Reduce Downtime減少停機
Online cleaning helps reduce machine disassembly and time-consuming manual maintenance.透過線上清潔，減少拆機與耗時的人工維護作業。
Clean Pad ｜測試座清潔墊
Clean smarter. Keep testing.
聰明清潔，持續測試。
Engineered cleaning performance for probe cards and semiconductor test interfaces.為探針卡與半導體測試介面打造的穩定清潔方案。
Product Advantages ｜產品優勢
Less interruption.
More productive testing.
減少生產中斷，提升測試效率。
Stable Contact維持穩定接觸
Manage contamination before it affects contact resistance and test consistency.在污染影響接觸阻抗與測試穩定前進行清潔管理。
Fit Your Package對應多元封裝
Custom profiles and dimensions for QFN, BGA, POP, QFP and special packages.支援 QFN、BGA、POP、QFP 與特殊封裝外型及尺寸客製。
Customer-Validated Performance ｜客戶驗證數據
Results proven
on the test floor.
以客戶產線驗證，呈現實際應用表現。
Production-line results demonstrate cleaning consistency, test stability and extended consumable life.產線實測結果展現清潔一致性、測試穩定度與耗材壽命表現。
>95%FPY初始良率
Higher is better｜越高越佳
0%100%
<0.5%Mis-Contact Rate開短路異常率
Lower is better｜越低越佳
0%1%
800Cleaning TouchdownsClean Pad 耐久性
Validated durability｜驗證耐久性
0800
200K+Insertions探針使用壽命
Validated lifetime｜驗證壽命
0200K+
Each visualization uses its own measurement scale. Results are based on customer production-line validation. Actual performance may vary by equipment, package, process and test conditions.各圖表採用獨立量測尺度。數據來自客戶產線驗證；實際表現依設備、封裝、製程及測試條件而異。
Application-led Design ｜以應用為核心
Not just a pad.
A process fit.
不只是一片清潔墊，更要符合實際製程。
Controlled cleaning 可控清潔Polishing + Sticking｜研磨＋沾黏
Material selection matched to contact type and operating conditions.依接觸型態與操作條件選擇適用材料。
Wide temperature compatibility 耐高低溫環境−55°C to 150°C
Designed to maintain material performance across demanding high- and low-temperature test conditions.適用 −55°C 至 150°C 的高低溫測試條件，維持材料穩定表現。
Inspection & traceability 檢驗與追溯Unit-Level Lot Identification｜每顆產品標記批號
Dimensional inspection and unit-level lot identification support consistent quality and production traceability.透過尺寸檢驗與每顆產品批號標記，維持穩定品質並支援生產追溯。
In Operation ｜製程實況
Automated cleaning.
Integrated into production.

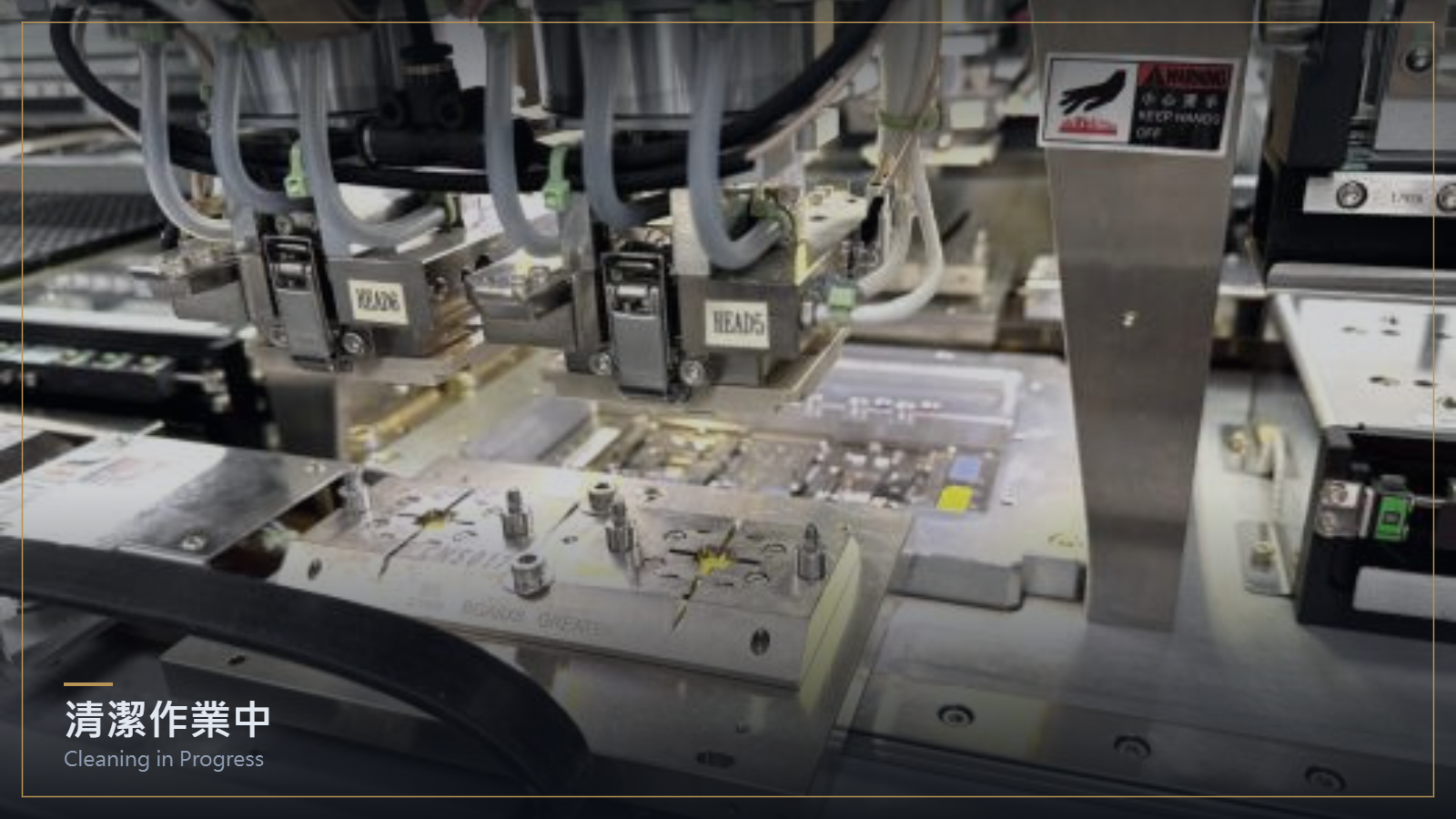

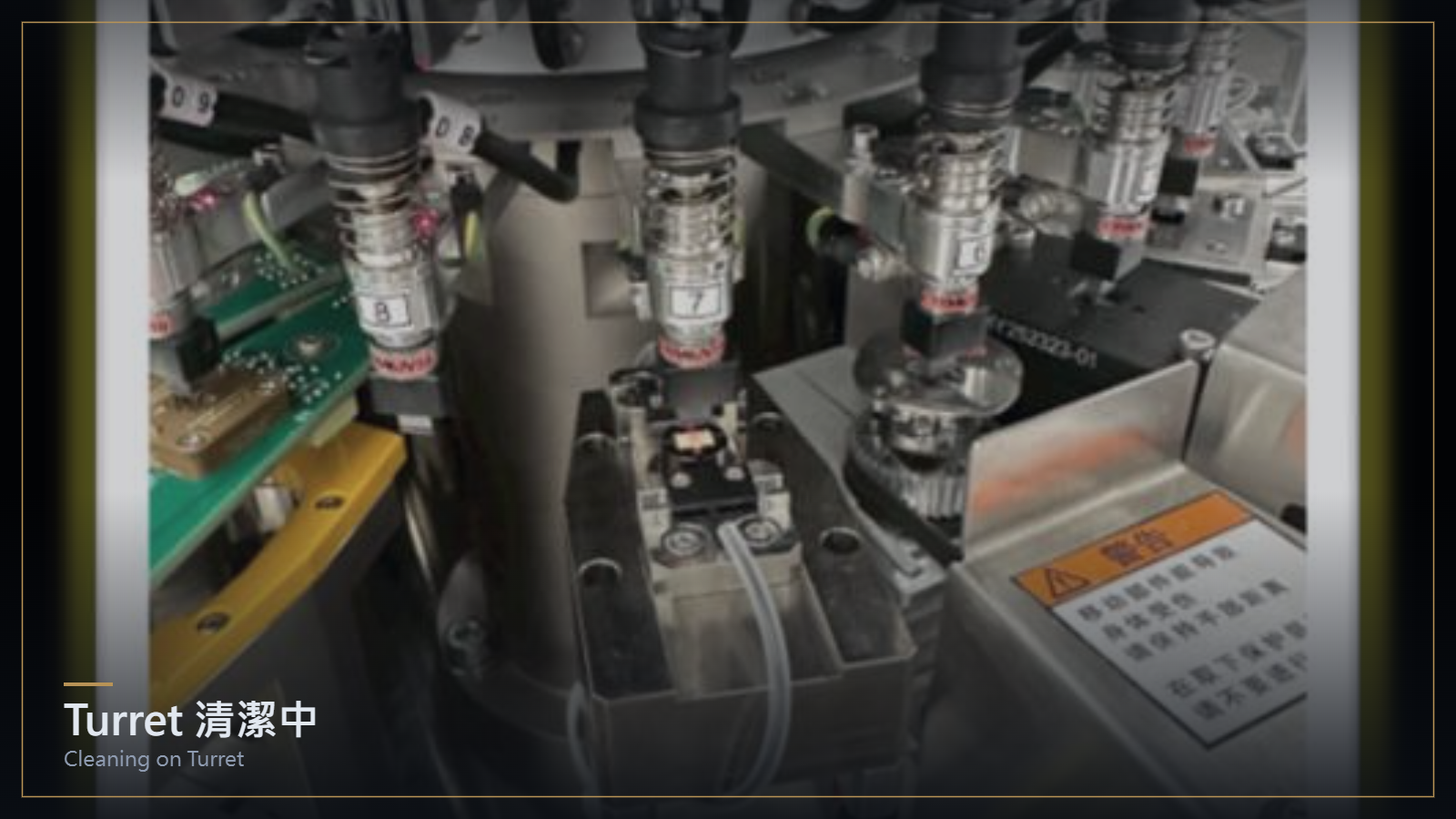

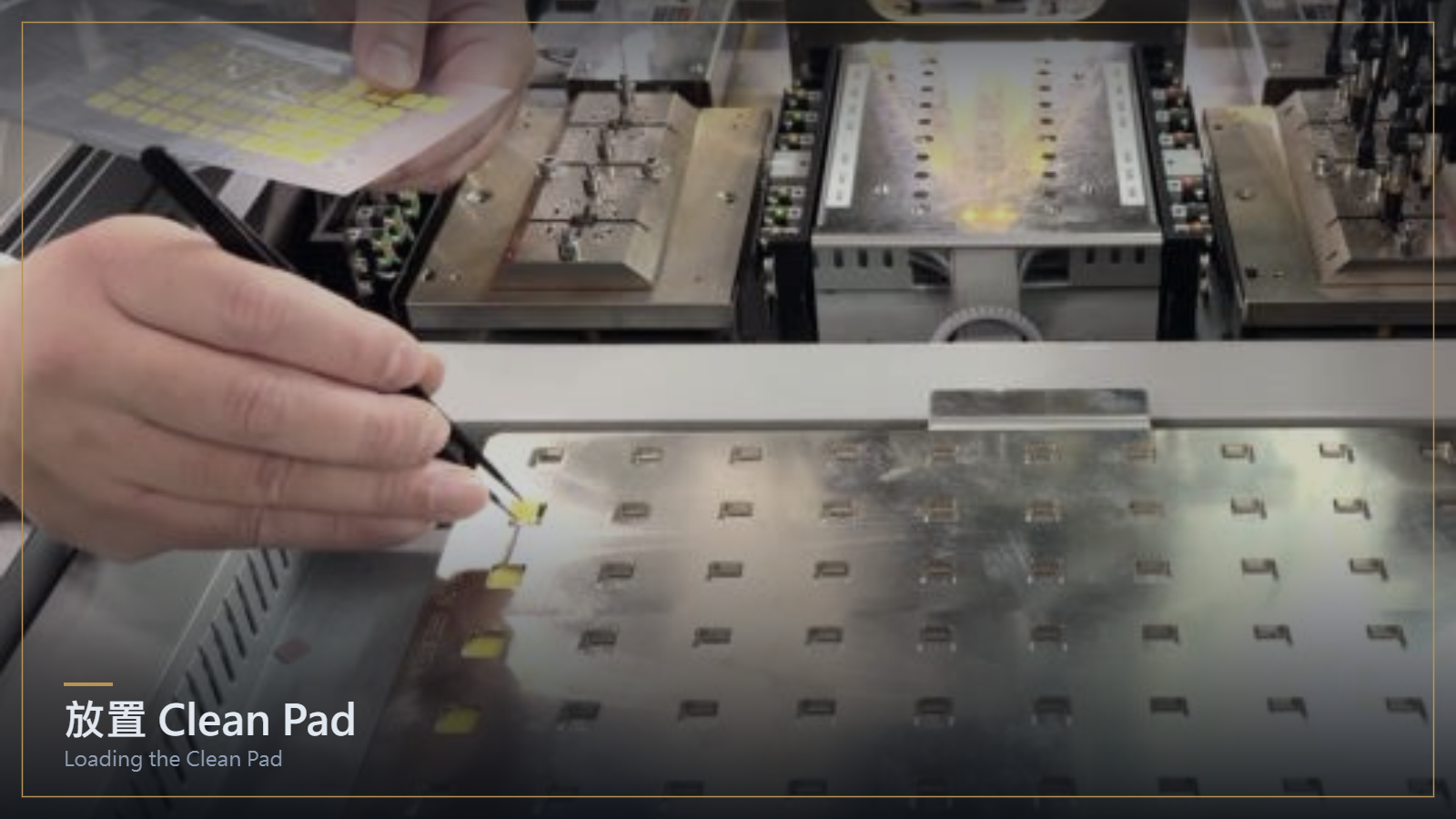

Clean Pad 於 Pick & Place 與 Turret 測試機台上的自動清潔作業實況。

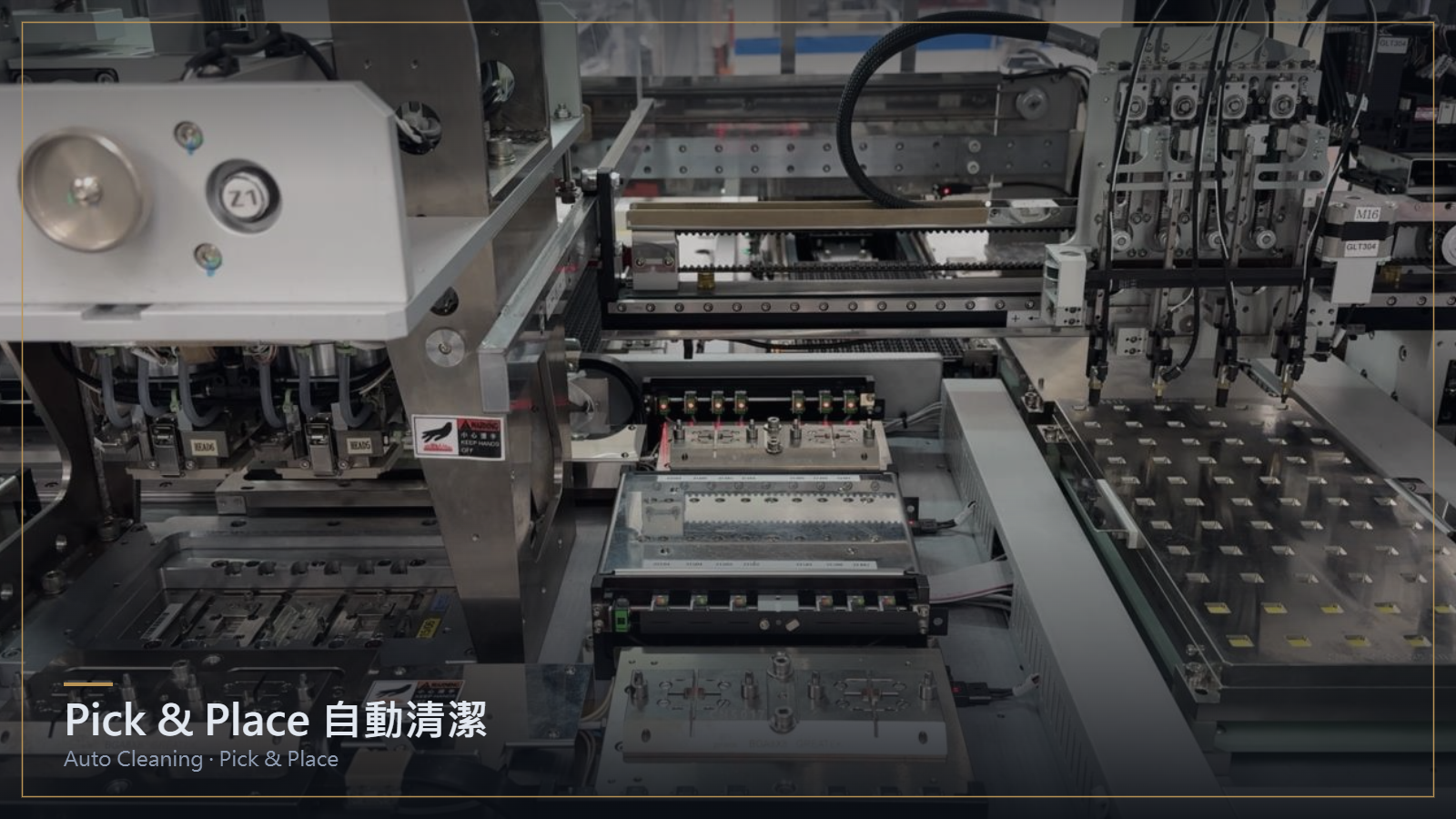

Pick & Place取放式測試機台

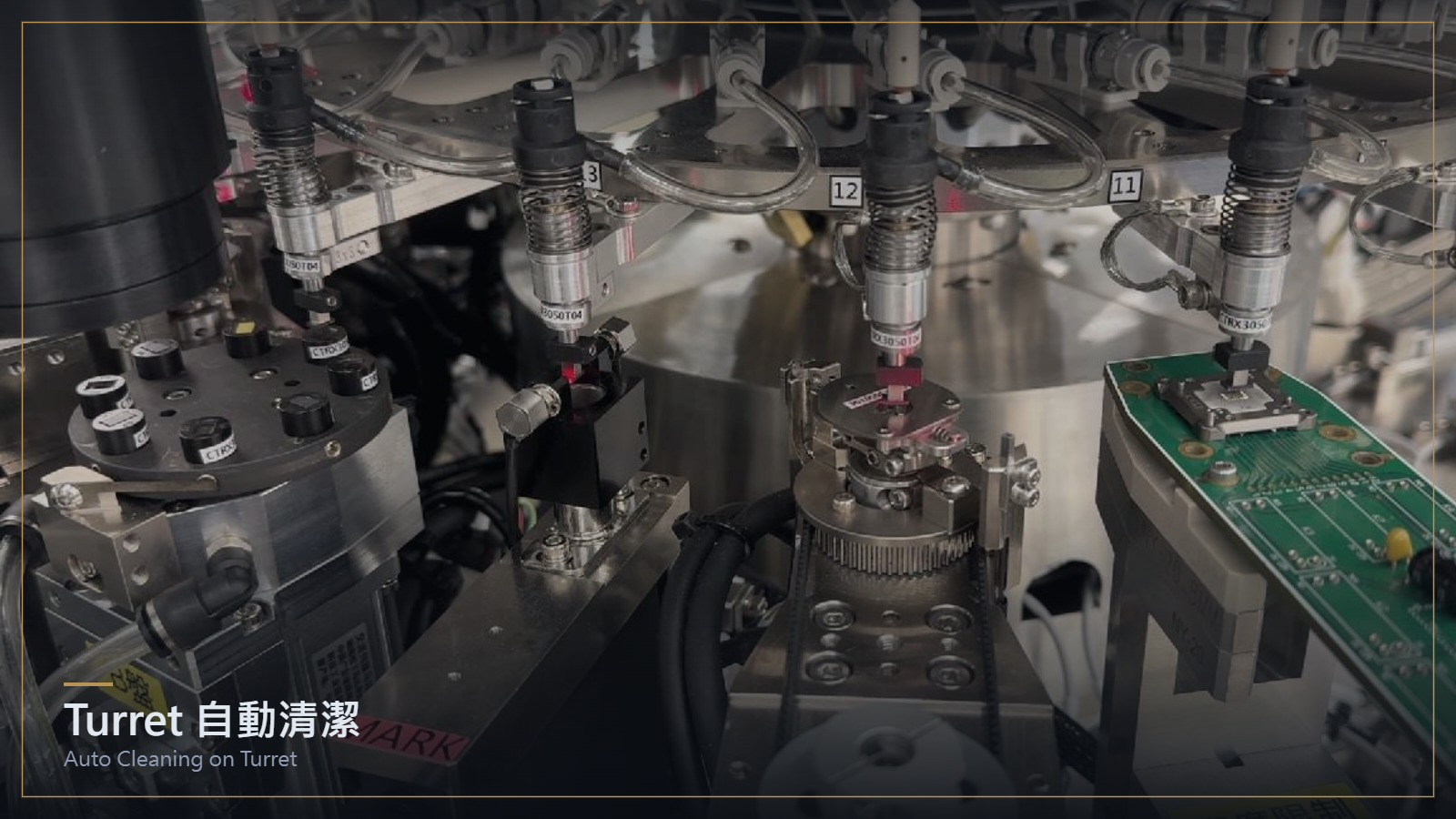

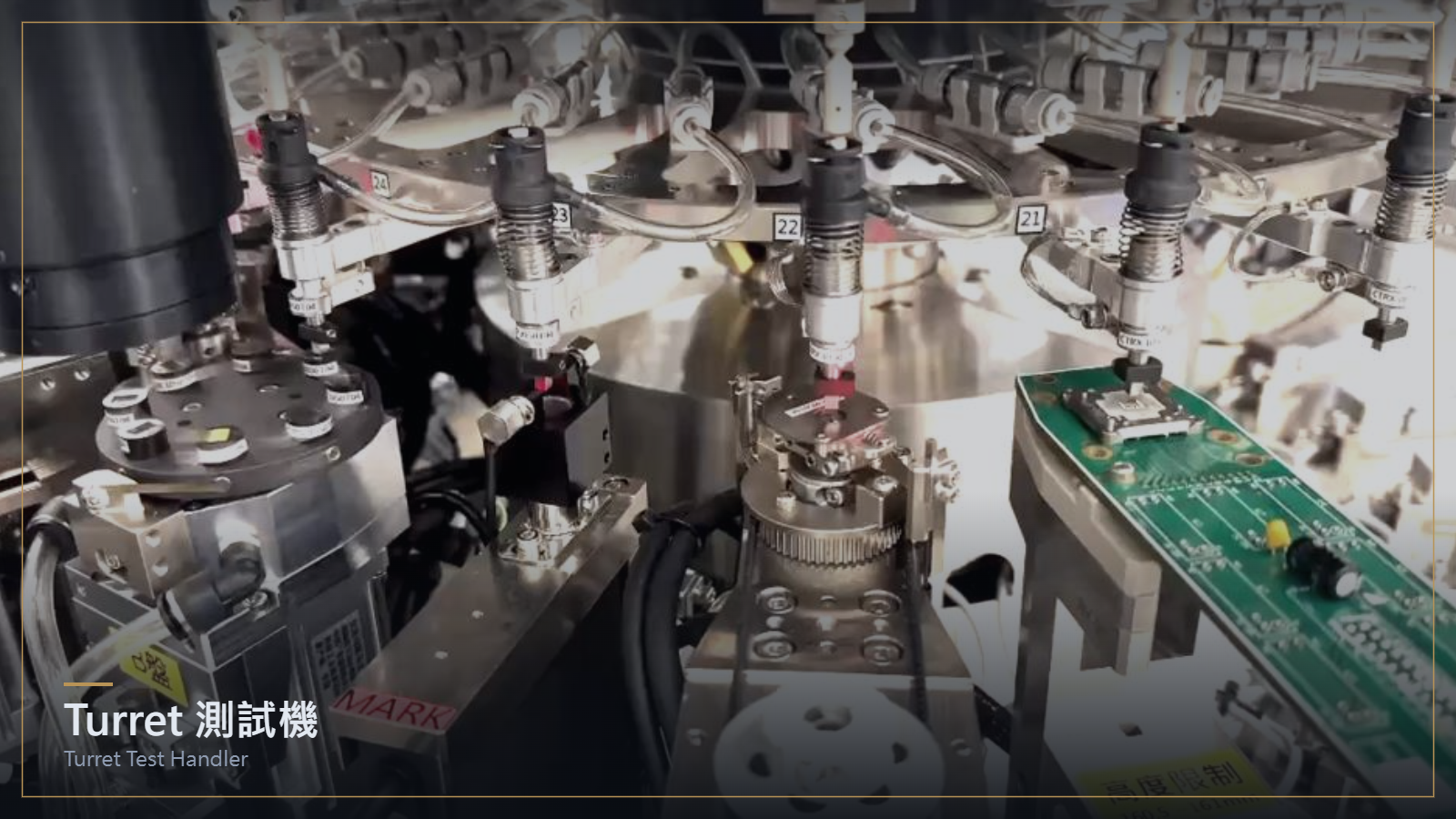

Turret Test Handler轉塔式測試機台
Extreme Environment Testing & Certification ｜極端環境耐受實測與國際認證
Tested for demanding
production conditions.
以成品耐受測試與國際環保規範，分別驗證產品可靠度。
Finished Product Thermal Shock Test冷熱衝擊試驗（成品測試）
High Temperature｜高溫條件150°C ± 2°CHold for 1 hour｜停留 1 小時
Low Temperature｜低溫條件−55°C ± 2°CHold for 1 hour｜停留 1 小時
Test Cycles｜測試週期5 CyclesEvaluate after 4 hours at room temperature｜回復常溫至少 4 小時後判定
Result｜最終判定
Adhesion remained consistent with the control sample.與未測樣品相比，黏著性一致。
Field Application｜實務應用Tri-Temp Test Handlers三溫測試機
Customer validation confirms that the product can be applied in Tri-Temp Test Handlers and perform cleaning operations as intended, providing evidence of practical field application.產品已經客戶端驗證，可應用於三溫測試機並正常執行清潔作業，作為實務應用佐證。
SGS Environmental ComplianceSGS 國際綠色環保檢驗
RoHS and SVHC are verified through separate SGS environmental test reports.RoHS 與 SVHC 分別由獨立的 SGS 環保檢驗報告進行驗證。
SGS RoHSSGS SVHC
Chinese and English report versions are available upon request.備有中英文版本，歡迎客戶詢問索取。
